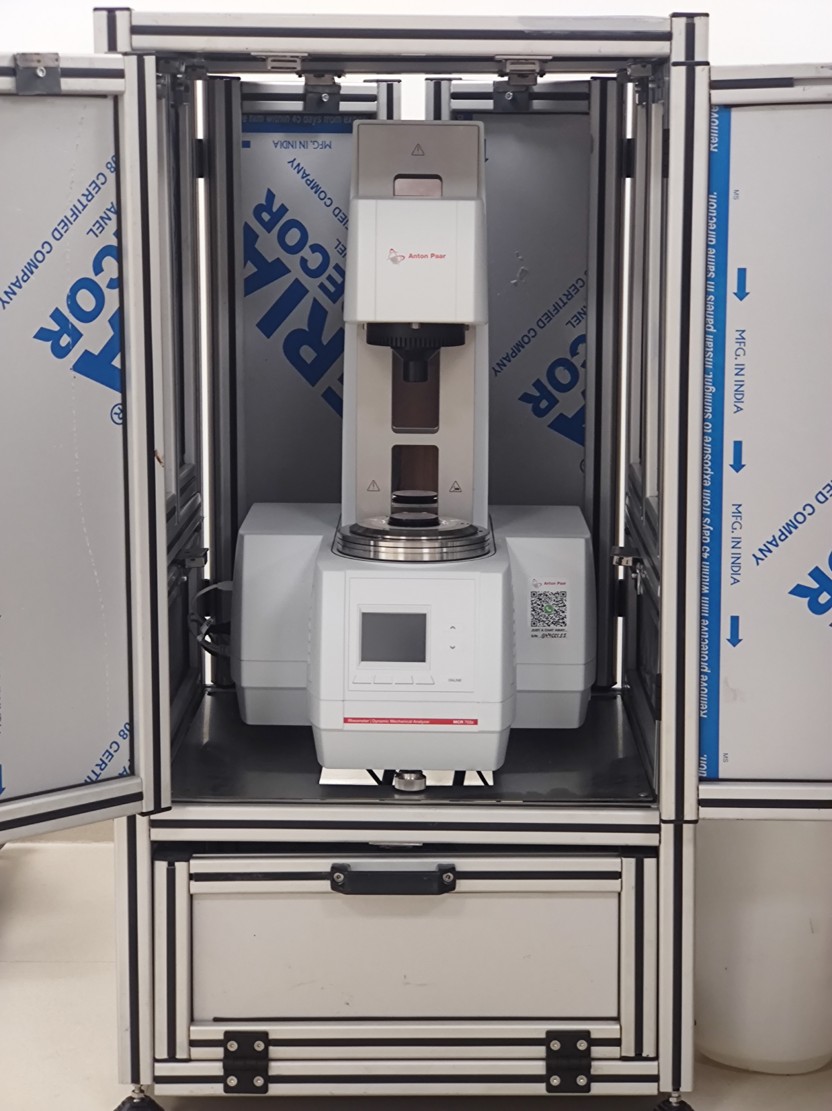

Rheometer

MAKE: Anton Paar

MODEL: MCR702e

Specifications:

Peltier Temperature device (plate) [Temp. Range: -50ᵒC to +220ᵒC] with
- Cone plate measuring system,
- Parallel plate measuring system
Peltier Temperature device (cylindrical) [Temp. Range: -30ᵒC to 200ᵒC) with
- Concentric cylinder System,
- Double-gap measuring system
Convection Temperature Device (CTD): CTD is compatible with Rotational Drive [Temp. Range: -160ᵒC to 600ᵒC),
Universal Extensional Fixture (UXF)
Interfacial Rheological System (IRS) [Temp. range: 5 °C to 70 °C].
Electro-Rheological Device (ERD) [Temp range: -50 °C and 300 °C]
Dynamic Mechanical Analysis (DMA)

Application:

Evaluate the flow behavior of creams, gels, and suspensions, ensuring proper spreadability, injectability, and long-term stability of drug formulations.
Measures rheological properties of electrode slurries and printing inks to improve coating uniformity and device performance in batteries and printed electronics.
Measures viscosity and viscoelastic properties of products like yogurt, chocolate, and sauces to ensure consistent texture, mouthfeel, and shelf stability.
Characterizes melt viscosity and curing behavior of thermoplastics, thermosets, and elastomers to optimize processing and product performance.
Assesses the application properties of lotions, foundations, and shampoos, ensuring a desirable feel and flow during use.
